Glimma · M012 Series
Select a drawing-listed SKU. Confirm its control and defogging functions with NewThingLine.
SKU: M012-6070TCD

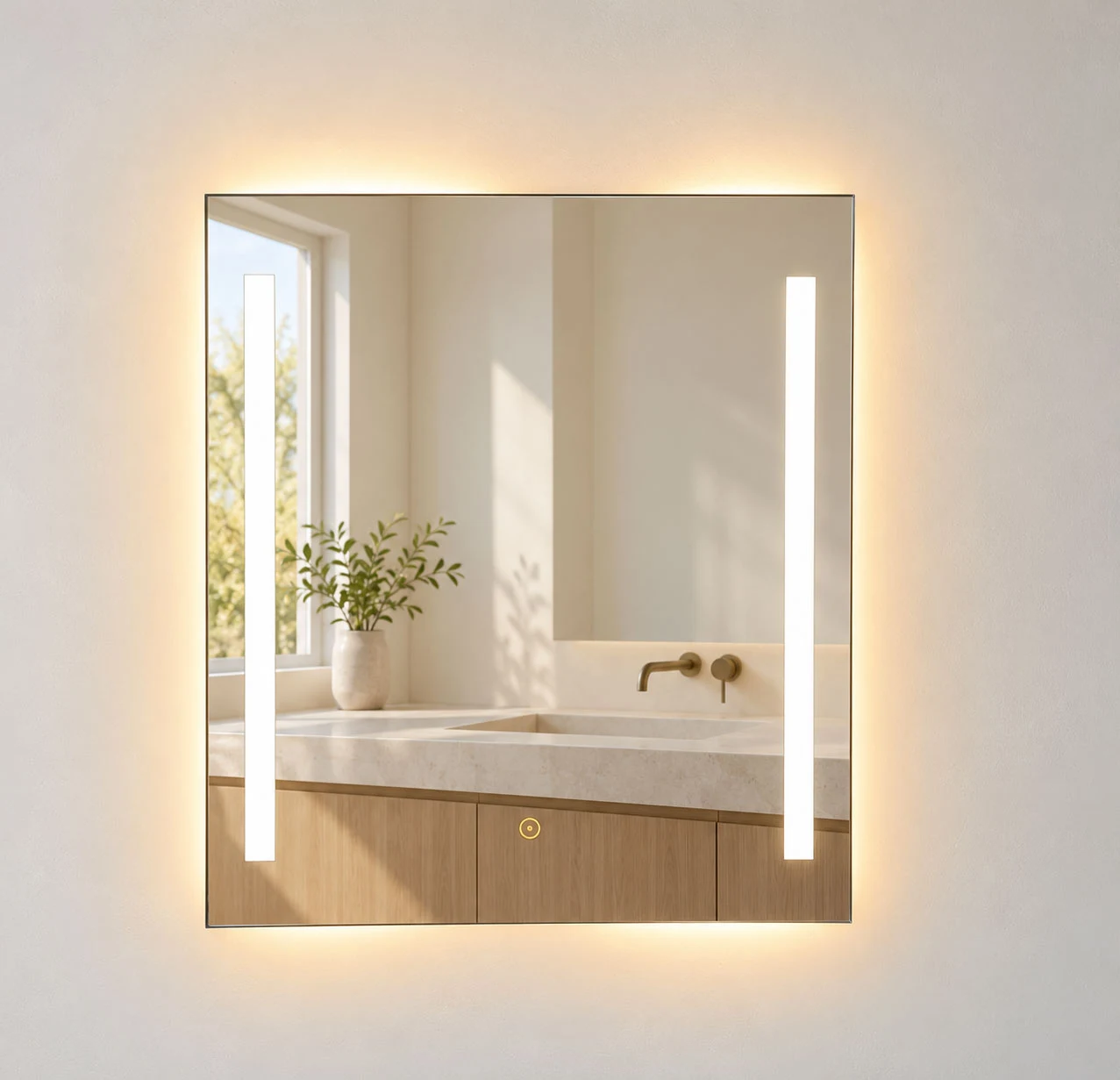

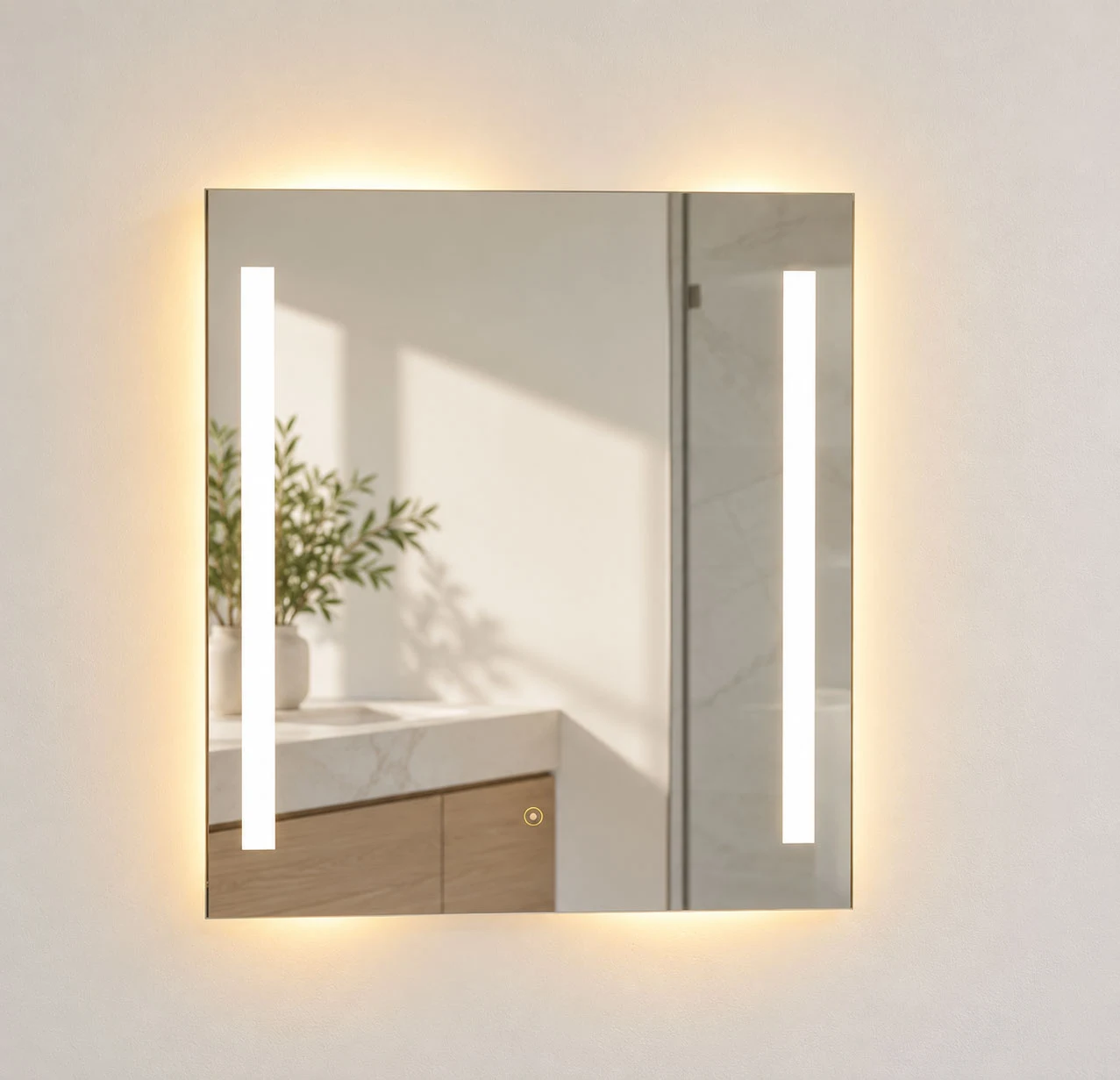

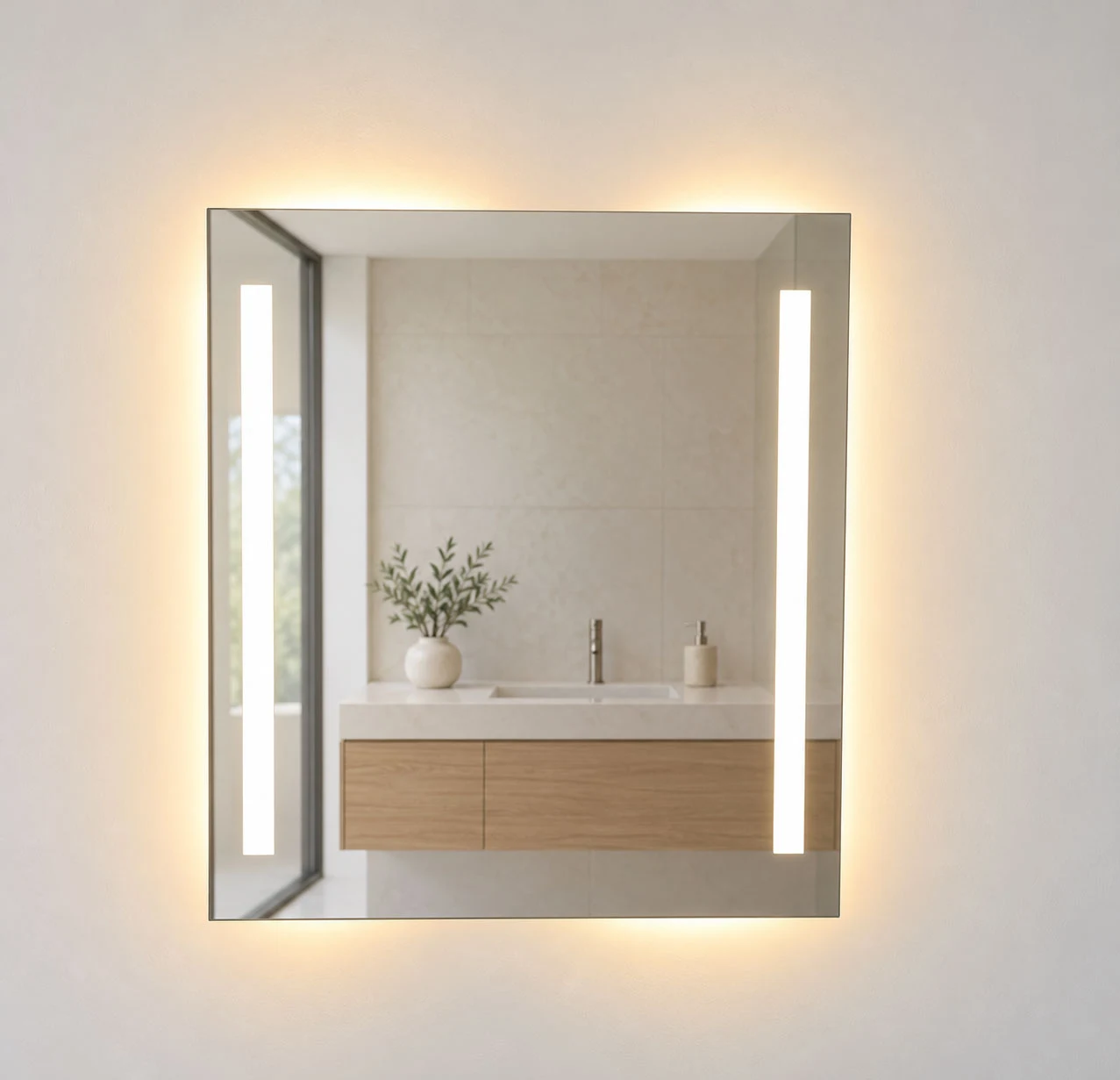

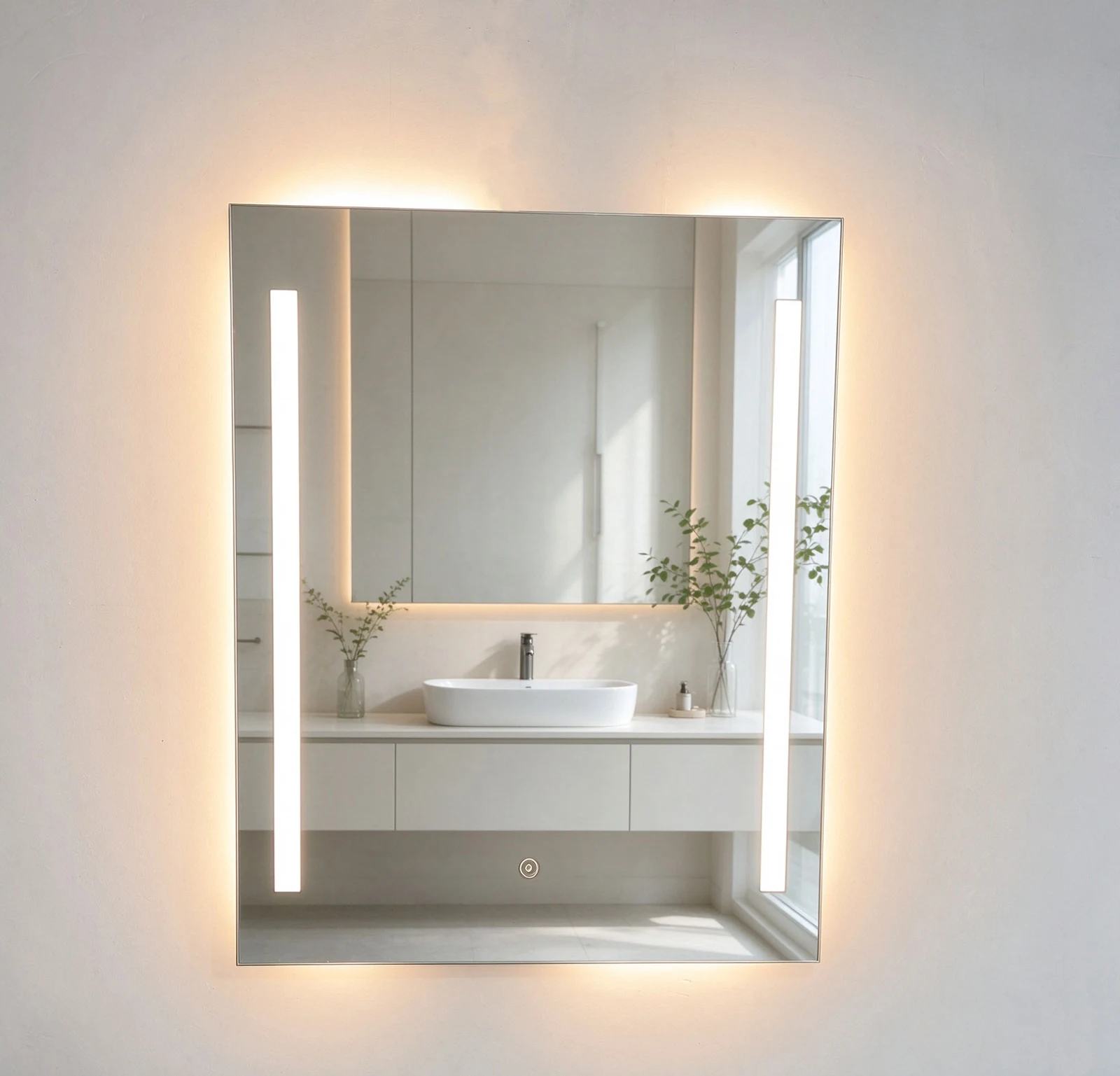

Request QuoteTwin vertical illuminated bands combine with a soft glow behind the mirror.
A dedicated light guide frame supports the frameless illuminated design.
A replaceable LED strip structure is specified in the product catalogue.
Discuss touch sensing, defogging, colour tuning and dimming options.
| SKU | M012-6070TCD | Series | Glimma M012 |
|---|---|---|---|
| Dimensions | 600 × 700 × 29 mm | Shape | Rectangle |
| Lighting | Frontlit + backlit | Finish | Frameless |
| Light source | 2835 LED strip | Construction | Replaceable LED strip structure |
| Light guide | Injection-moulded frame | IP rating | IP44 |
| Voltage versions | 100–120V~ / 220–240V~ | Colour temperatures | 3000K / 4000K / 6500K |
| Optional functions | Touch sensor, defogging, colour tuning, LED dimming | Configuration | Confirm functions for selected SKU |
| Drawing | V0 · 12 September 2026 | Illuminated band length | 550 mm |
Voltage ranges refer to available versions. The catalogue lists optional functions; the exact configuration is confirmed per SKU. The V0 drawing specifies 29 mm depth, compared with approximately 30 mm in the catalogue.
IP44 rated; the catalogue identifies Zone 2 application. Confirm the required electrical version and installation suitability for your project.

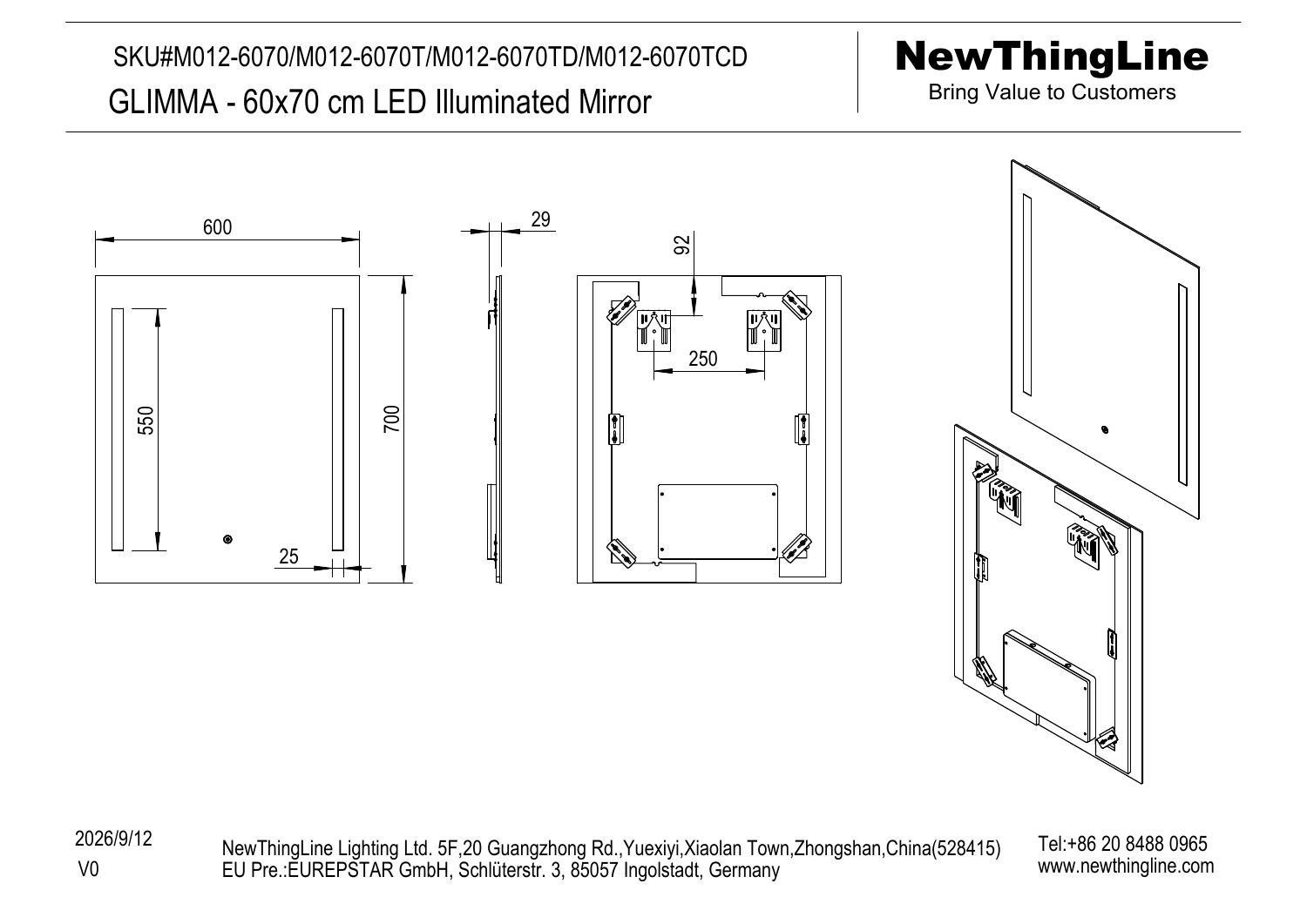

600 × 700 × 29 mm · V0 · 12 September 2026. Download the PDF below for the original drawing.

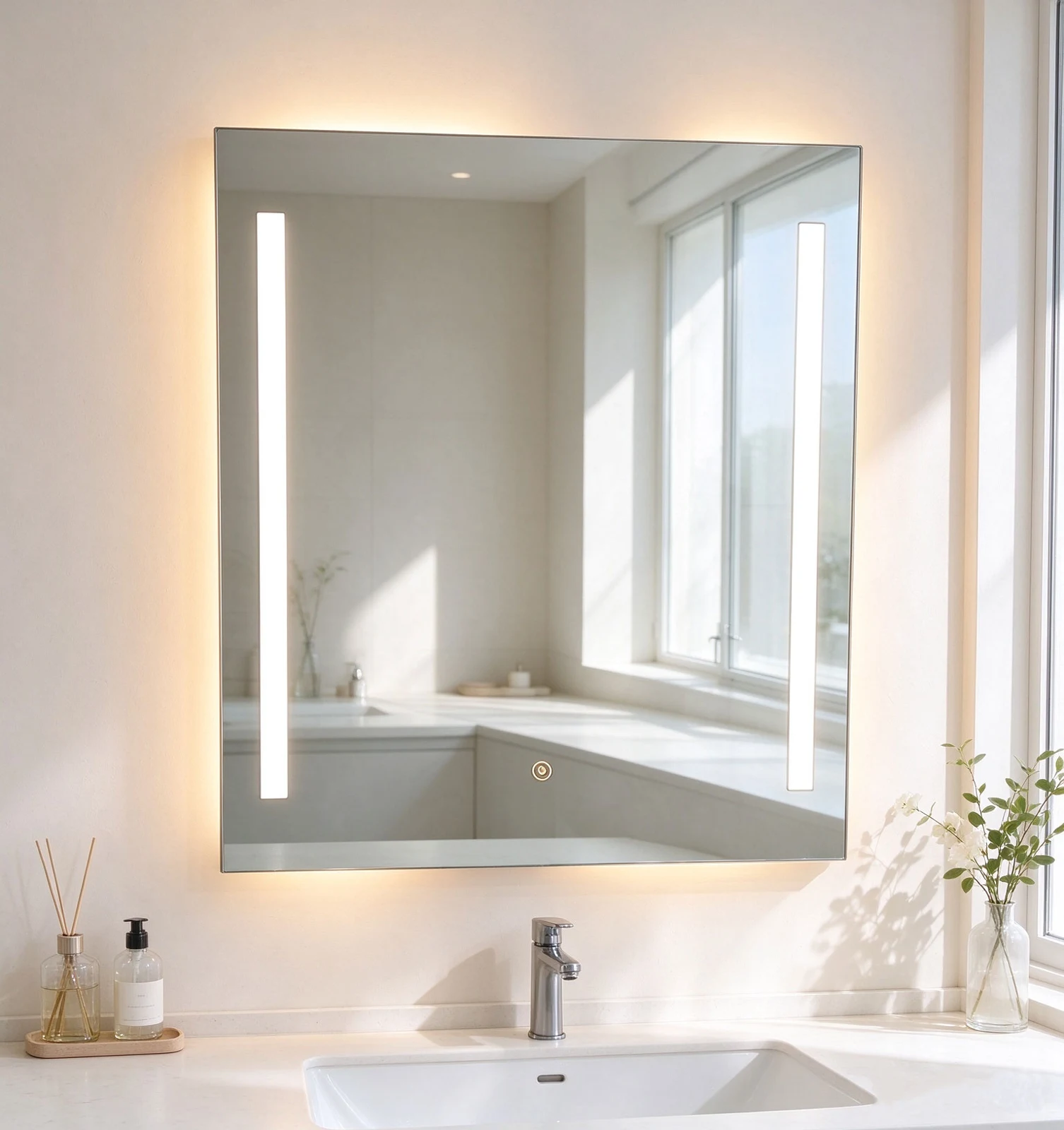

Glimma brings a clean rectangular silhouette and soft illumination to the bathroom vanity.
Format: 60 × 70 cm | Lighting: Front lighting + ambient backlighting
The two illuminated front bands frame the reflection, while the rear glow adds depth around the mirror.
Discuss the required voltage version and optional functions when specifying your project.
Contact NewThingLine to check CAD resource availability and request access for your project.
Request 3D CAD AccessYes. The catalogue specifies soft light from both the front and the back. Two vertical illuminated bands are visible on the mirror face.
The featured 60 × 70 cm model measures 600 × 700 × 29 mm according to the V0 technical drawing. The catalogue shows an approximately 30 mm profile.
The catalogue lists touch sensing, defogging, colour tuning and LED dimming as optional functions. Contact NewThingLine to confirm the combination supplied with your selected SKU.
The catalogue specifies a replaceable LED strip structure. Ask NewThingLine for the applicable service instructions and replacement component details.
The catalogue lists 100–120V~ and 220–240V~ versions. State your destination market and required supply voltage when requesting a quotation.
