Corona Round
Corona Round LED Bathroom Mirror
- Clear-edge round mirror with backlit LED only
- No sandblasted front ring
- Sizes 60 / 70 / 80 / 90 / 100 cm
- Copper-free silver mirror with shatter-proof safety film
- Basic / Touch / Touch+CCT / Touch+Defogger / TCD
- IP44 and CRI Ra>90
Highlights
Clear-edge round mirror
No sandblasted front ring for a quieter architectural look.
Backlit LED only
Soft rear illumination creates a clean floating outline without front-edge light.
Project size range
Available in 60, 70, 80, 90 and 100 cm for residential and hospitality bathrooms.
Configurable controls
Choose Basic, Touch, CCT, Defogger or full TCD from one product page.
Technical Specifications
| SKU | M006-60TCD | Configuration | Touch + CCT + Defogger |
|---|---|---|---|
| Size | D600x30 mm | Shape | Round |
| LED Power | 22W | Total Power | 22+12(Defogger) Total 34 |
| Voltage | 100-120V/220-240 V~ | Frequency | 50/60Hz |
| CCT | 3000-6500 K | CRI | Ra>90 |
| IP Rating | IP44 | Control | Touch + CCT + Defogger |
| Defogger | Yes | Driver | Integrated LED driver |
| Material | Copper Free Silver Mirror | Finish | Frameless |
| Packaging | Single carton per mirror | Carton | 680x680x80mm / 5.0 kg NW / 7.5 kg GW |
| Warranty | 3 years | Installation | Wall mounted |
Safety Compliance
CE, UKCA, ETL, and RoHS compliant for bathroom LED mirror applications (IP44).

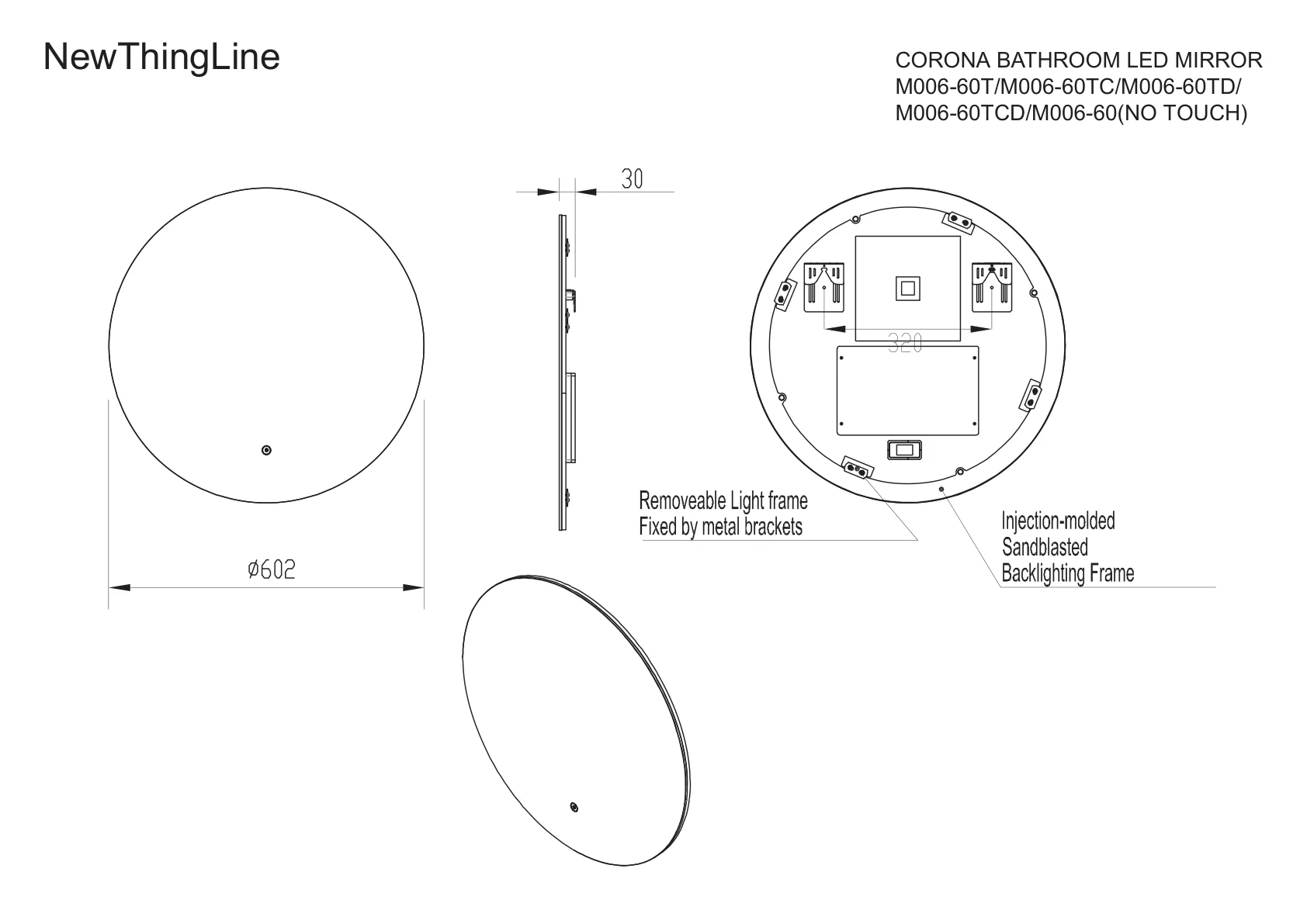

Dimension Drawing
Applications

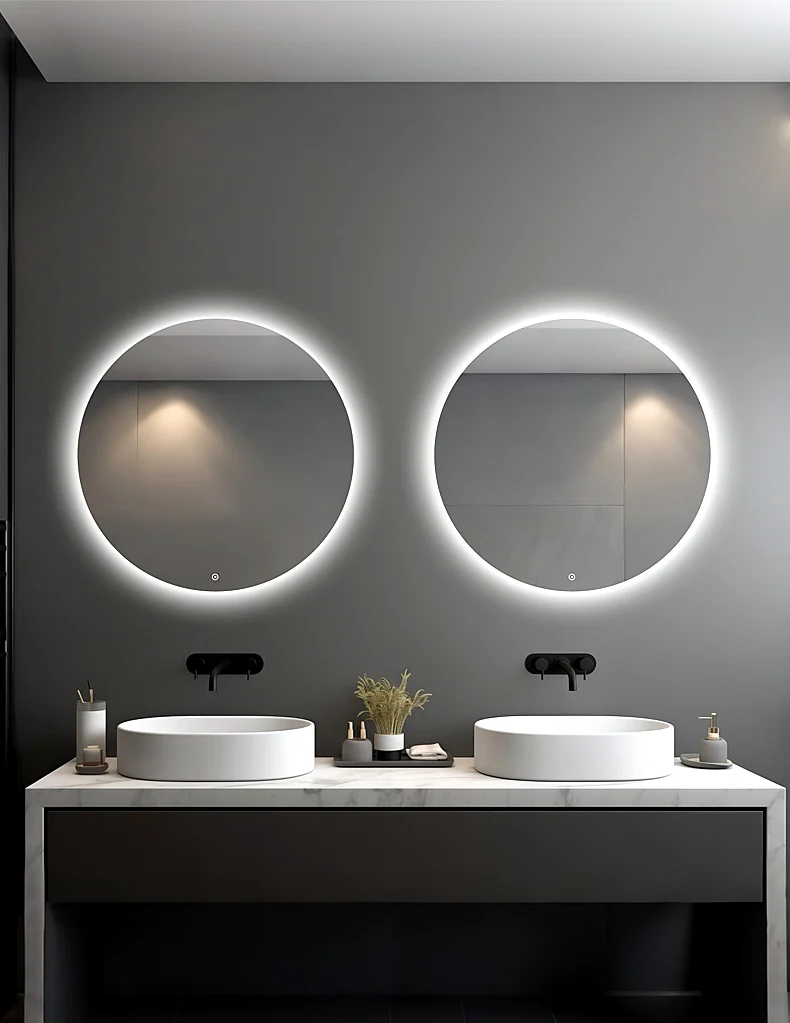

Residential Bathroom Vanity
Corona Round LED Bathroom Mirror is suitable for Bathroom vanity, hotel bathroom, apartment bathroom requiring clean illumination, practical daily use and reliable project supply.
Room size: 3-12 sqm | Lighting: 200-500 lux
Suitable for bathroom wall, compact washrooms, hospitality guest rooms, and repeated project installations where consistent size, lighting, and replacement parts matter.
Wall mounted is recommended for project supply.
Downloads
3D CAD Resources
Distributor CAD Access
3D CAD files are available for approved distributors and project partners.
Request 3D CAD AccessProduct Videos
FAQ
What size is Corona Round LED Bathroom Mirror?
The standard size shown on this page is D600x30 mm.
What input voltage is supported?
This product is specified for 100-120V/220-240 V~.
Is it suitable for bathroom projects?
It is supplied with IP44 protection; final installation should follow local electrical and bathroom zoning rules.
Can I request project customization?
Yes. Size, configuration, packaging and project supply details can be confirmed during quotation.
What warranty is available?
The standard warranty is 3 years unless a project agreement states otherwise.
