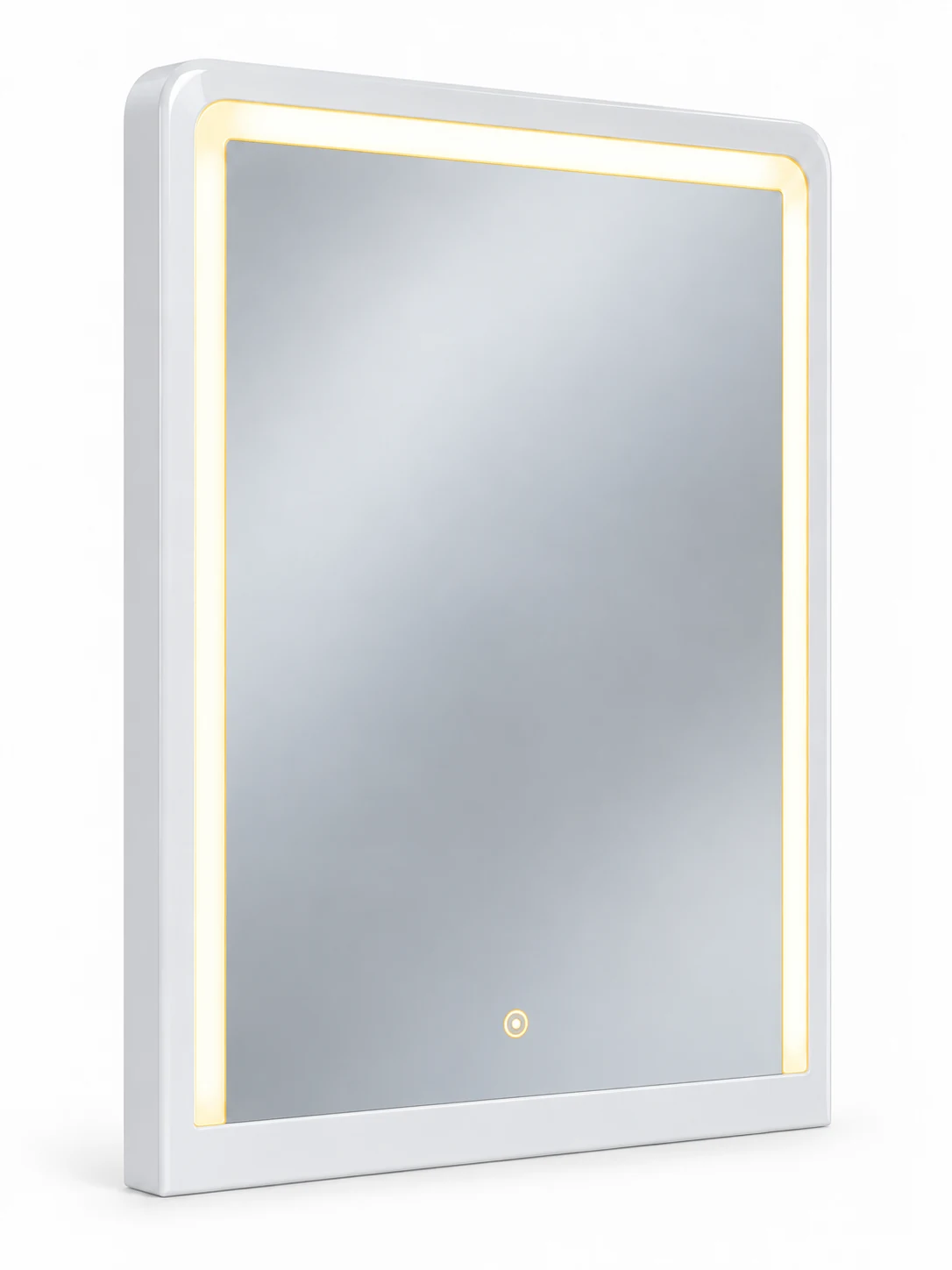

Oslo Mirror

Wood frame finished in white PU piano paint
Soft illuminated border with rounded upper corners
600 × 750 mm, with a 42 mm overall depth

Configuration

Request Quote

M014-6075 seriesWhite PU wood frameIP44

Highlights

White PU piano finish

A painted wood frame with a clean glossy white appearance.

Soft illumination

An integrated 2835 LED strip illuminates the mirror border.

Five configurations

Basic, Touch, Touch + CCT, Touch + Defogger, and Touch + CCT + Defogger.

600 × 750 mm

Dimensions taken directly from the supplied Oslo engineering drawing.

Technical Specifications

SKU	M014-6075T	Configuration	Touch
Dimensions (W × H × D)	600 × 750 × 42 mm	Frame finish	Wood + white PU piano paint
Light source	2835 LED strip	Colour temperature	3000 K / 4000 K / 6500 K
Input voltage	100–120 V AC / 220–240 V AC	Ingress protection	IP44
CCT adjustment	Not included	Defogger	Not included

Five SKU Configurations

Five confirmed configurations. Images show the supplied Touch reference.

SKU	Configuration
M014-6075	Basic
M014-6075T	Touch
M014-6075TC	Touch + CCT
M014-6075TD	Touch + Defogger
M014-6075TCD	Touch + CCT + Defogger

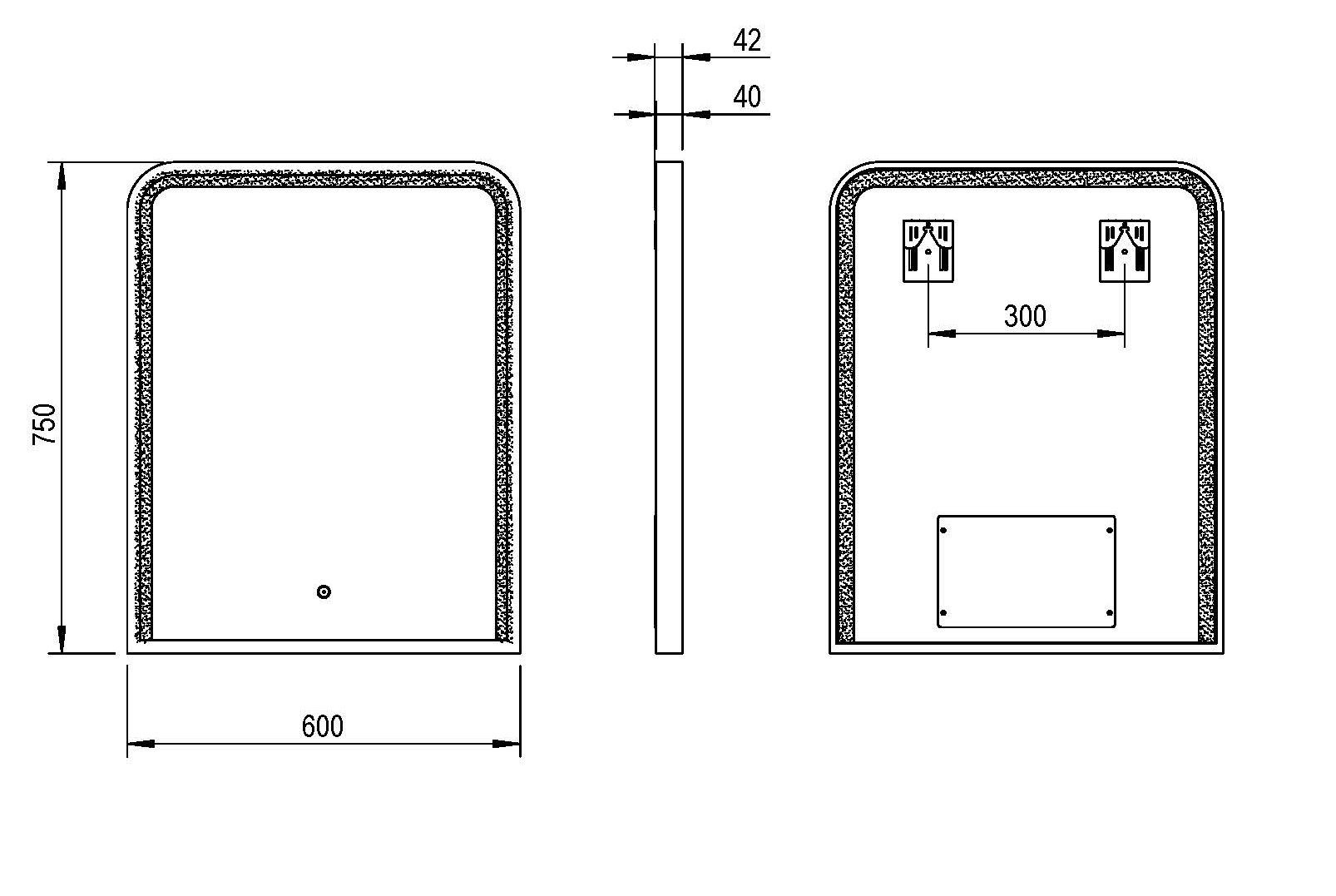

Dimension Drawing

Oslo M014-6075T drawing showing 600 mm width, 750 mm height, 42 mm overall depth and 300 mm mounting centres.

Applications

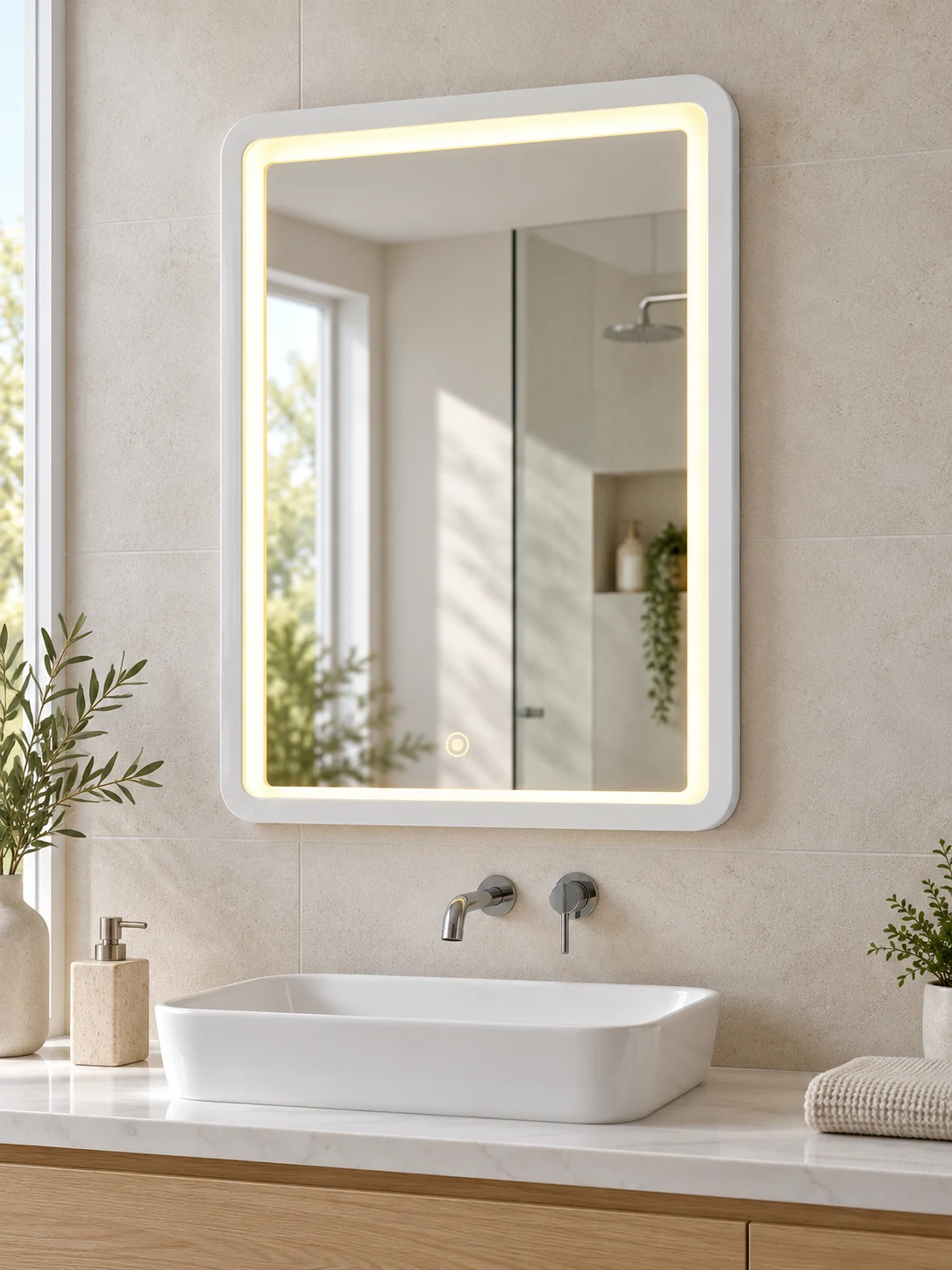

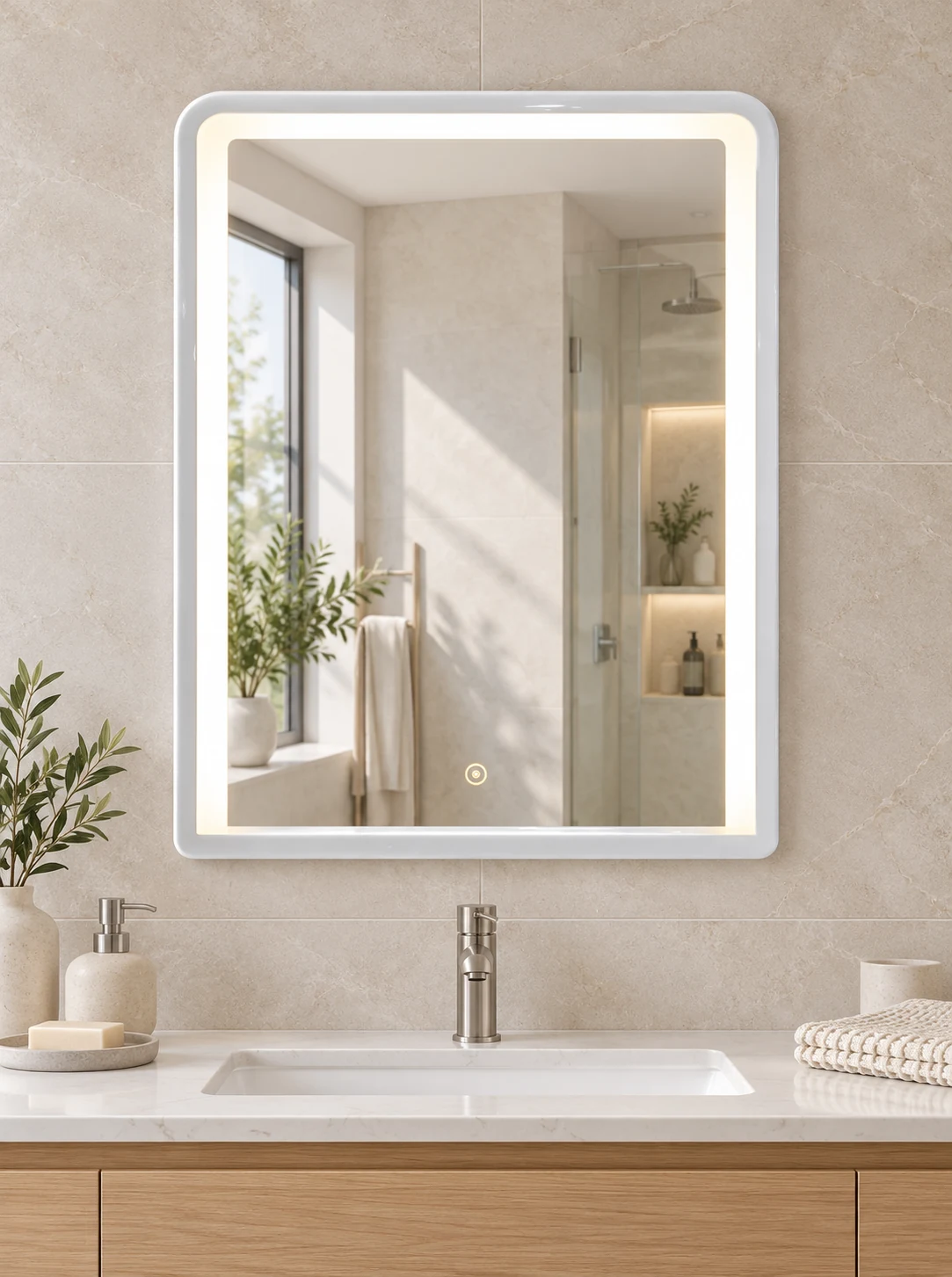

A considered finish for the bathroom

Pair soft mirror lighting with a white PU piano-painted wood frame above the basin. The supplied application images show Oslo in light stone bathroom settings.
